Which Marine Battery Charger is Right for You?
Compare our marine battery chargers to find the perfect match for your vessel's power needs
Download Complete Manual (PDF)Model & Image | Output Configuration | Charging Capacity | Battery Compatibility | Key Features | Dimensions |
---|---|---|---|---|---|
No Image
2-Bank Marine Charger
TL 1236C
|
12V 15A + 36V 10A
2-Bank with M8 Ring Terminals
|
15A + 10A
High-power charging for mixed voltage systems
|
LiFePO4, Lead Acid, AGM
12V Bank: All types | 36V Bank: LiFePO4 only
|
IP67 Rated Wake Up Function Auto Shutdown LED Indicators Temperature Protection |
335×245×99 mm
|
No Image
2-Bank Marine Charger
TL 1224C
|
12V 15A + 24V 10A
2-Bank with M8 Ring Terminals
|
15A + 10A
Optimized for 12V/24V dual systems
|
LiFePO4, Lead Acid, AGM
12V Bank: All types | 24V Bank: LiFePO4 only
|
IP67 Rated Wake Up Function Auto Shutdown LED Indicators Marine Grade |
293×245×99 mm
Weight: Not specified
|
No Image
3-Bank Marine Charger
TL 21224C
|
12V 10A × 2 + 24V 10A × 1
3-Bank with M8 Ring Terminals
|
10A per bank
Perfect for multiple 12V + 24V systems
|
LiFePO4, Lead Acid, AGM
Two 12V Banks: All types | 24V Bank: LiFePO4 only
|
IP67 Rated Individual Bank Control LED Status Cooling Fan Safety Protection |
304×245×99 mm
Weight: Not specified
|
No Image
3-Bank Marine Charger
TL 21236C
|
12V 10A × 2 + 36V 10A × 1
3-Bank with M8 Ring Terminals
|
10A per bank
Ideal for larger vessel power systems
|
LiFePO4, Lead Acid, AGM
Two 12V Banks: All types | 36V Bank: LiFePO4 only
|
IP67 Rated Individual Bank Control LED Status Cooling Fan Overtemp Protection |
361×245×99 mm
Weight: Not specified
|
No Image
3-Bank Marine Charger
TL 312C
|
12V 10A × 3
3-Bank with M8 Ring Terminals
|
10A per bank
Triple 12V system charging solution
|
LiFePO4, Lead Acid, AGM
All three banks: LiFePO4, Lead Acid, AGM selectable
|
IP67 Rated MODE Buttons LED Indicators Aluminum Heat Dissipation Wake Up Function |
265.5×245×99 mm
Weight: Not specified
|
No Image

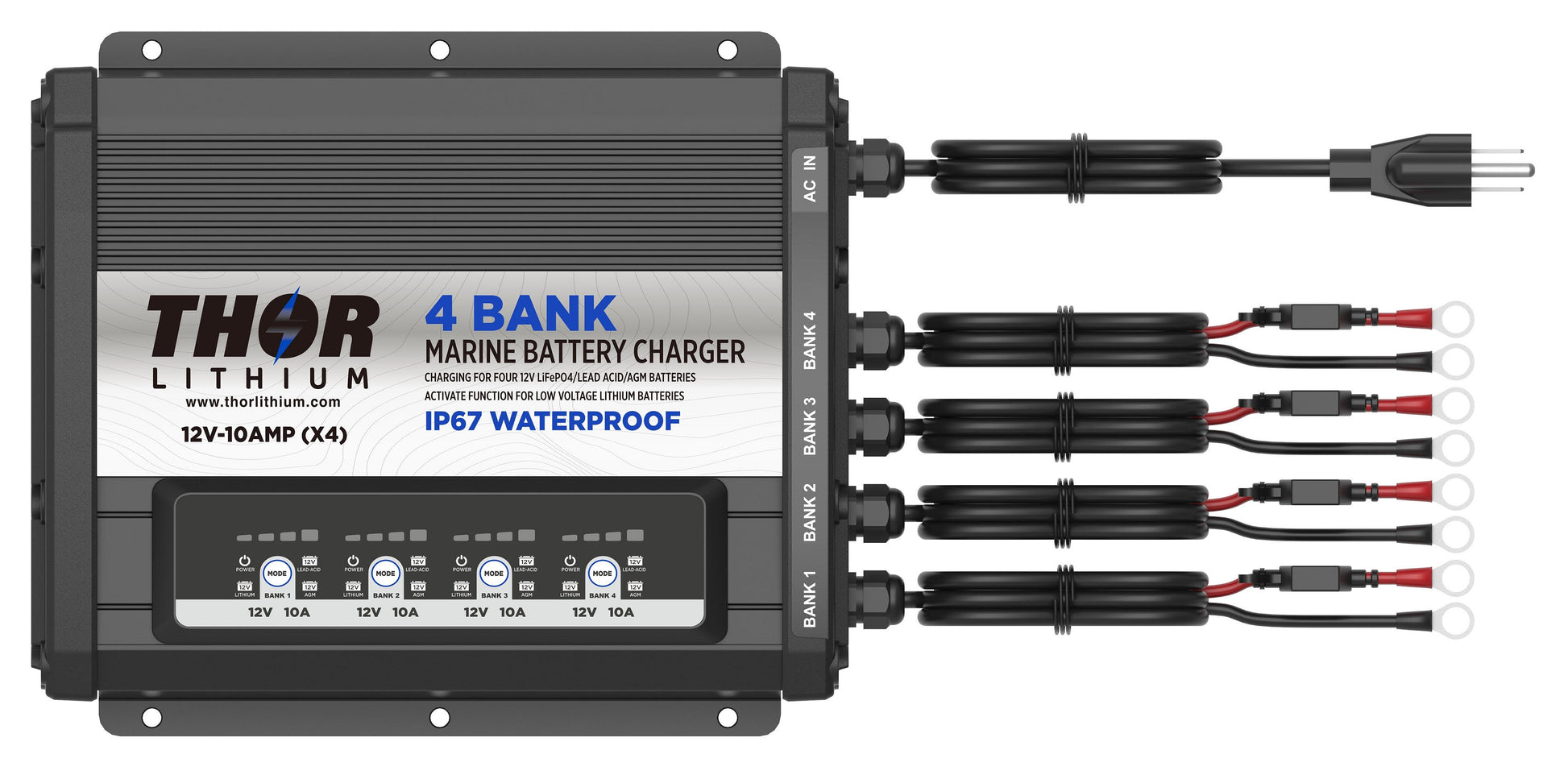

4-Bank Marine Charger
TL 412C
|
12V 10A × 4
4-Bank with M8 Ring Terminals
|
10A per bank
Maximum capacity for large vessel systems
|
LiFePO4, Lead Acid, AGM
All four banks: LiFePO4, Lead Acid, AGM selectable
|
IP67 Rated Individual MODE Buttons LED Status Array Waterproof Fan Full Protection Suite |
304×245×99 mm
Weight: Not specified
|
Note: All chargers feature IP67 waterproof rating, marine-grade construction, and built-in safety protections.
